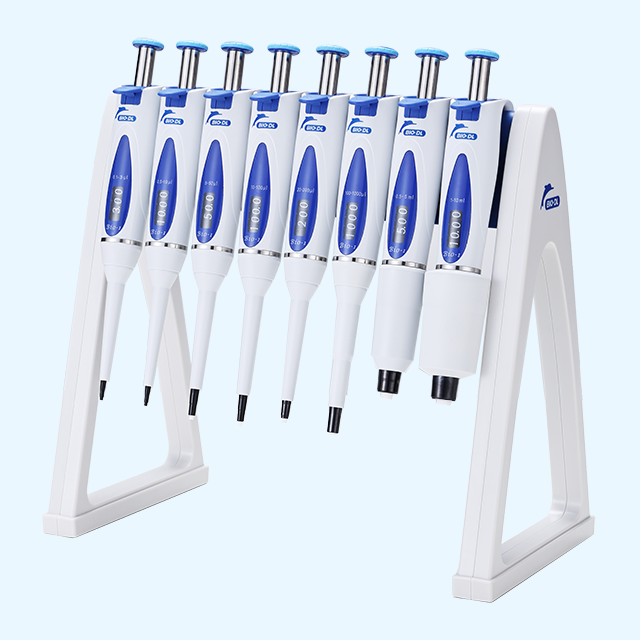

BIO-1 Pipette

Specifications

· Force required for pipetting is less than 5N

· Stable tip ejection (lever design for reduced effort)

· The wave keel handle fits the curve of the palm arch

·Rotatable ring design for exceptional tip compatibility

Availability:

Product Description

Product Feature

Force required for pipetting is less than 5N

Comfortable operation and ergonomic pipetting maintain accurate results even during prolonged use.

Stable tip ejection (lever design for reduced effort)

The tip ejection mechanism gently ejects the tip, minimizing contamination of the surrounding work environment by residual liquid. The circular thumb movement during tip ejection is also optimized for ergonomics.

Simple user adjustment

User adjustment ensures accurate results when factory calibration is not applicable. The minimum scale of adjustment matches the pipette's minimum increment.

Rotatable ring design for exceptional tip compatibility

Large and clear display

The large, clear display enables accurate and quick volume adjustment.

Item No.	Channels	Range	Increment	Measuring Volume	Inaccuracy	Imprecision
72741021	1-ch	0.1 - 3 µl	0.02 µl	3.0 µl	±1.30 %	0.80%
				1.5 µl	±2.40 %	1.60%
				0.3 µl	±10.00 %	6.00%
72741031	1-ch	0.5 - 10 µl	0.05 µl	10 µl	±1.00 %	0.60%
				5 µl	±1.50 %	1.00%
				1 µl	±2.50 %	1.50%
72741051	1-ch	5 - 50 µl	0.2 µl	50 µl	±0.90 %	0.40%
				25 µl	±1.20 %	1.00%
				5 µl	±3.00 %	2.00%
72741061	1-ch	10 - 100 µl	0.5 µl	100 µl	±0.80 %	0.15%
				50 µl	±1.00 %	0.40%
				10 µl	±2.00 %	1.00%
72741071	1-ch	20 - 200 µl	1 µl	200 µl	±0.60 %	0.15%
				100 µl	±0.80 %	0.30%
				20 µ	±2.30 %	0.90 %
72741081	1-ch	100 - 1000 µl	5 µl	1000 µl	±0.70 %	0.20%
				500 µl	±0.70 %	0.20%
				100 µl	±2.00 %	0.50 %
72741091	1-ch	500 - 5000 µl	20 µl	5000 µl	±0.50 %	0.20%
				2500 µl	±0.60 %	0.30%
				500 µl	±2.00 %	0.60%
72741111	1-ch	1 -10 ml	50 µl	10000 µl	±0.60 %	0.20%
				5000 µl	±1.20 %	0.30%
				1000 µl	±3.00 %	0.60%
